Super Duplex Steel

  • Home
  • Super Duplex Steel

Super Duplex Steel

Super Duplex stainless, is a mixed microstructure of austenite and ferrite (50/50) which has improved strength over ferritic and austenitic steel grades. The main difference is that Super Duplex has a higher molybdenum and chromium content which gives the material greater corrosion resistance than standard duplex grades. The balanced duel phase microstructure combines high strength with cost effective corrosion resistance particularly in high chloride environments. Super Duplex has the same benefits as its counterpart – it has lower alloying costs when compared with similar ferritic and austenitic grades with equipment corrosion resistance in chloride containing environments due to the material’s increased tensile and yield strength. In many cases this gives the purchaser the welcomed option of purchasing smaller thicknesses without the need to compromise on quality and performance. Available forms are Super Duplex Steel Pipes & Tubes, Super Duplex Steel Round Bars, Super Duplex Steel Fasteners, Super Duplex Steel Sheets & Plates, Super Duplex Steel Forged Fittings, Super Duplex Steel Valves, Super Duplex Steel pipe fittings, Super Duplex Steel flanges.

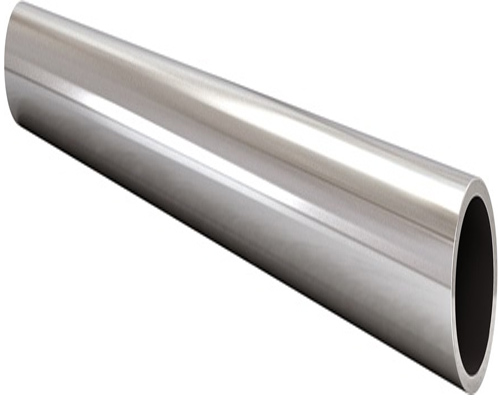

Super Duplex Pipes

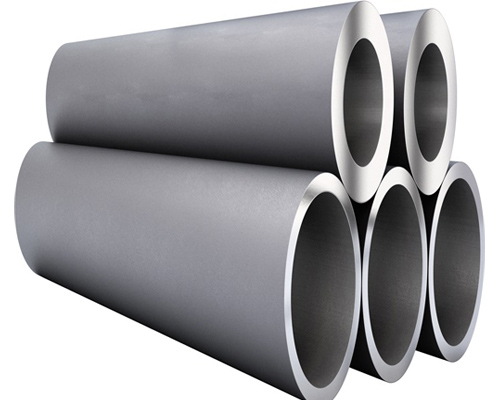

Super Duplex Tubes

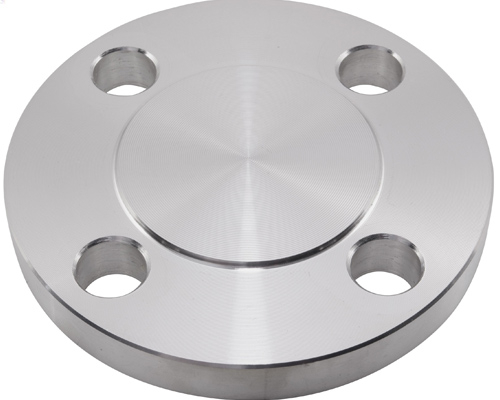

Super Duplex Flanges

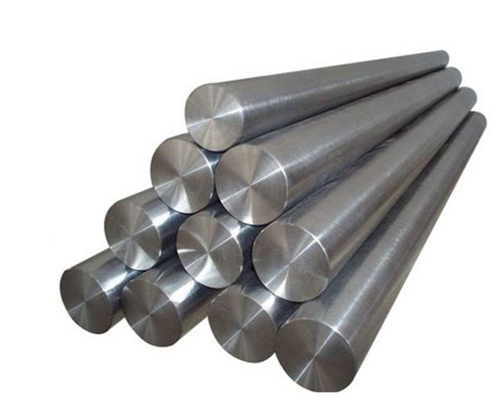

Super Duplex Round Bars

Super Duplex Steel Pipes & Tubes

Specification :

Standard : ASTM A790, A789 / ASME SA790, SA A789

Size : 1/2" TO 48" NB

Grade : UNS NO. S32750 / S32760 / S32950


Super Duplex Steel Pipe Fittings

Specification :

Standard : ASTM / ASME A815 / SA815

Size : 1/2" to 24" NB to 24″NB in Sch 10S, 40S, 80S, 160s, XXS

Grade : UNS NO. S32750 / S32760 / S32950


Super Duplex Steel Forged Fittings

Specification :

Standard : ASTM A182 / ASME SA182

Size : 1/2"NB TO 4"NB IN(Socketweld & Screwed-Threaded)

Grade : UNS NO. S32750 / S32760 / S32950


Super Duplex Steel Sheets And Plates

Specification :

Standard : ASTM A240 / ASME SA240

Size : 5 mm To 100 mm thick in 1000 mm TO 2500 mm width & 2500 mm to 12500 mm

Form : Coils, foils, shim sheet, perforated sheet, strip, flats, blank (circle), ring (flange), etc.


Super Duplex Steel Bars and Rods

Specification :

Standard : ASTM / ASME SA A582, A276, A564, ASTM A484, 484M

Range :1 0 mm To 100 mm Dia in 100 mm TO 6000 mm Length.

Form : Round Square Hex (A/F) Bush Rectangle Flat

Grade : UNS NO. S32750 / S32760 / S32950


Super Duplex Steel Fasteners

Specification :

Standard : ASTM A193 / ASTM A194

Size : M10 to M100

Length : UPTO 5 meters

Grade : UNS NO. S32750 / S32760 / S32950


Super Duplex Steel Flange

Specification :

Standard : ASTM A182 / ASME SA182

Size : 1/8" NB TO 24" NB

Class : 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.

Grade : UNS NO. S32750 / S32760 / S32950
